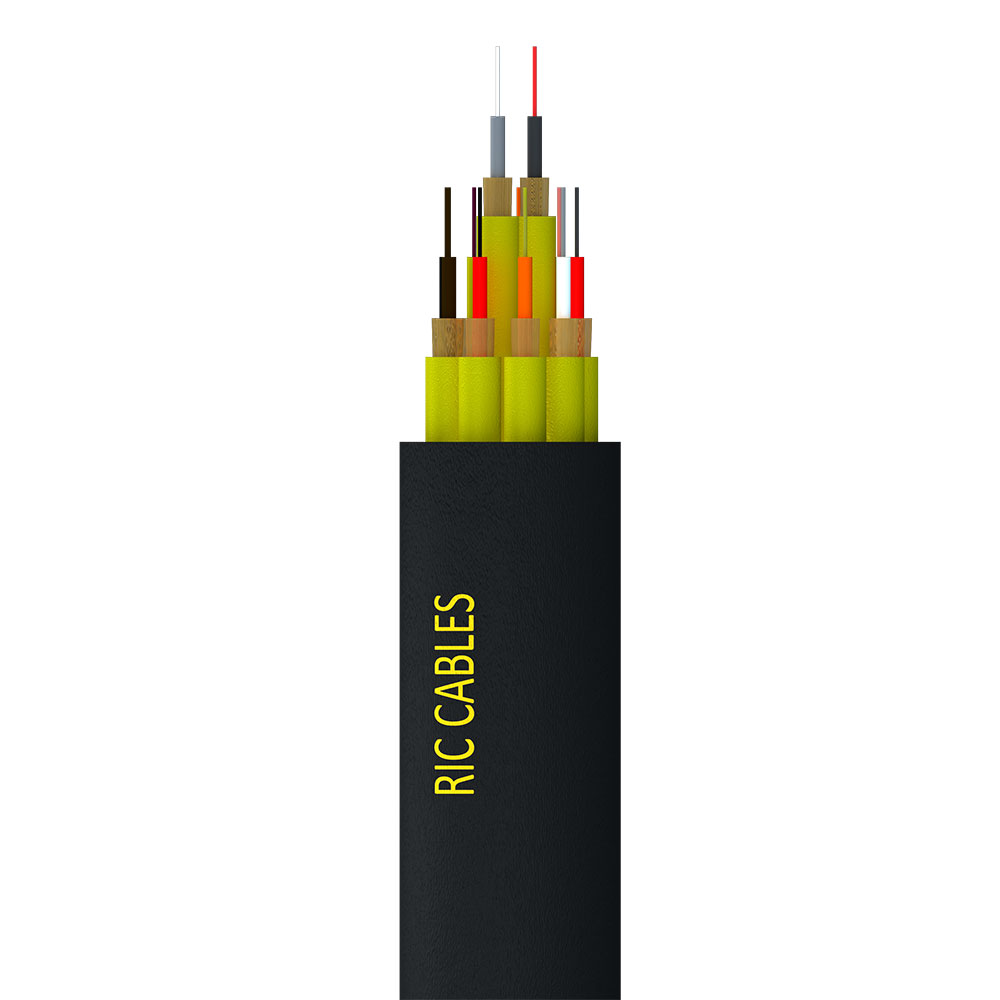

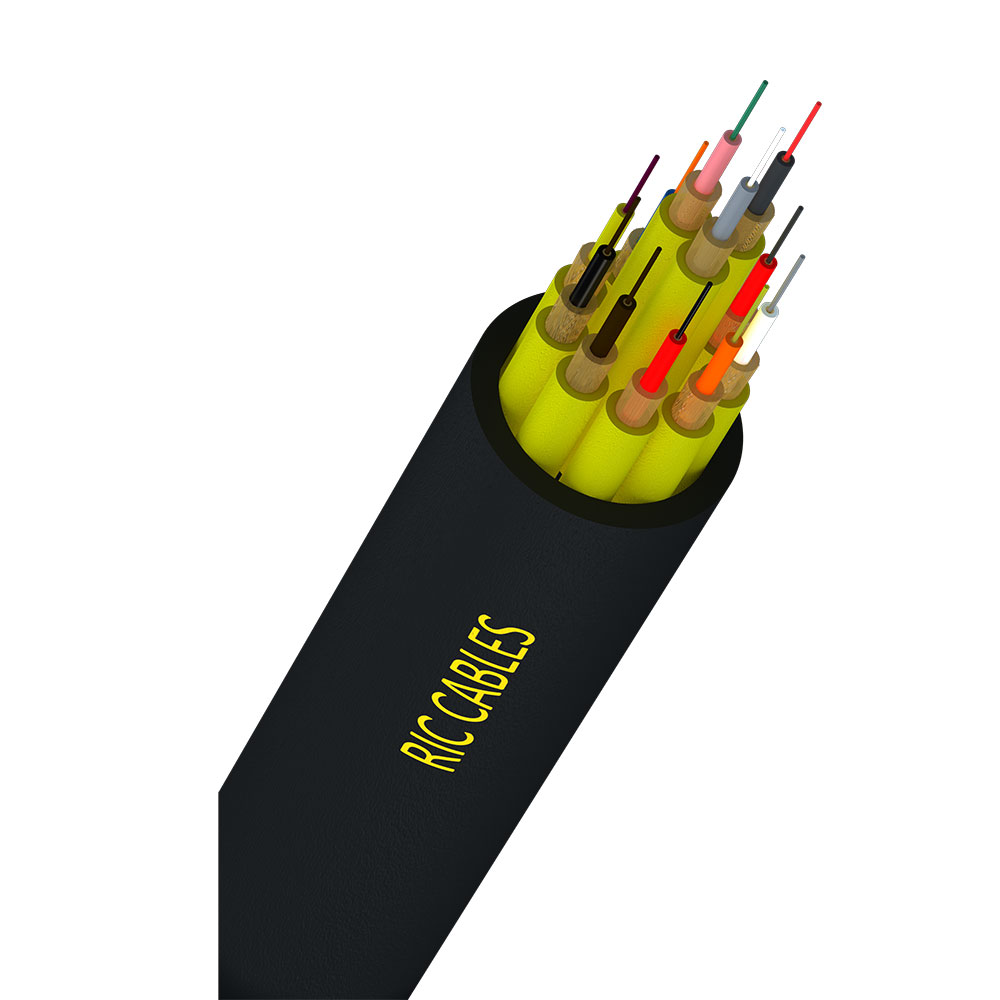

کابل فیبر نوری تفکیک شونده - Break Out Cable





  • خصوصیات ویژه محصول
  • تغییرات ممکن
  • مشخصات فنی
  • کلمات کلیدی
  • نظرات کاربران



کابل داخل ساختمانی بدون هیچ المان فلزی

امکان نصب مستقیم کانکتور و دارای مقاوت کششی نسبتا مناسب

با روکش LSZH بدون هالوژن و گاز خطرناک و سمی



امکان تولید با روکش LSZH یا هر نوع ماده دیگر برای مقاومت در برابر شعله ور شدن یا هر خصوصیت خاص دیگر

امکان تولید با طراحی خاص مشتری

طول تحویل بر اساس درخواست مشتری

امکان تولید با رنگ بندی خاص مورد درخواست مشتری

 CONSTRUCTION:



Specification

Recommended

Standard

IEC 794-1/ITUT G652D, G657, G651

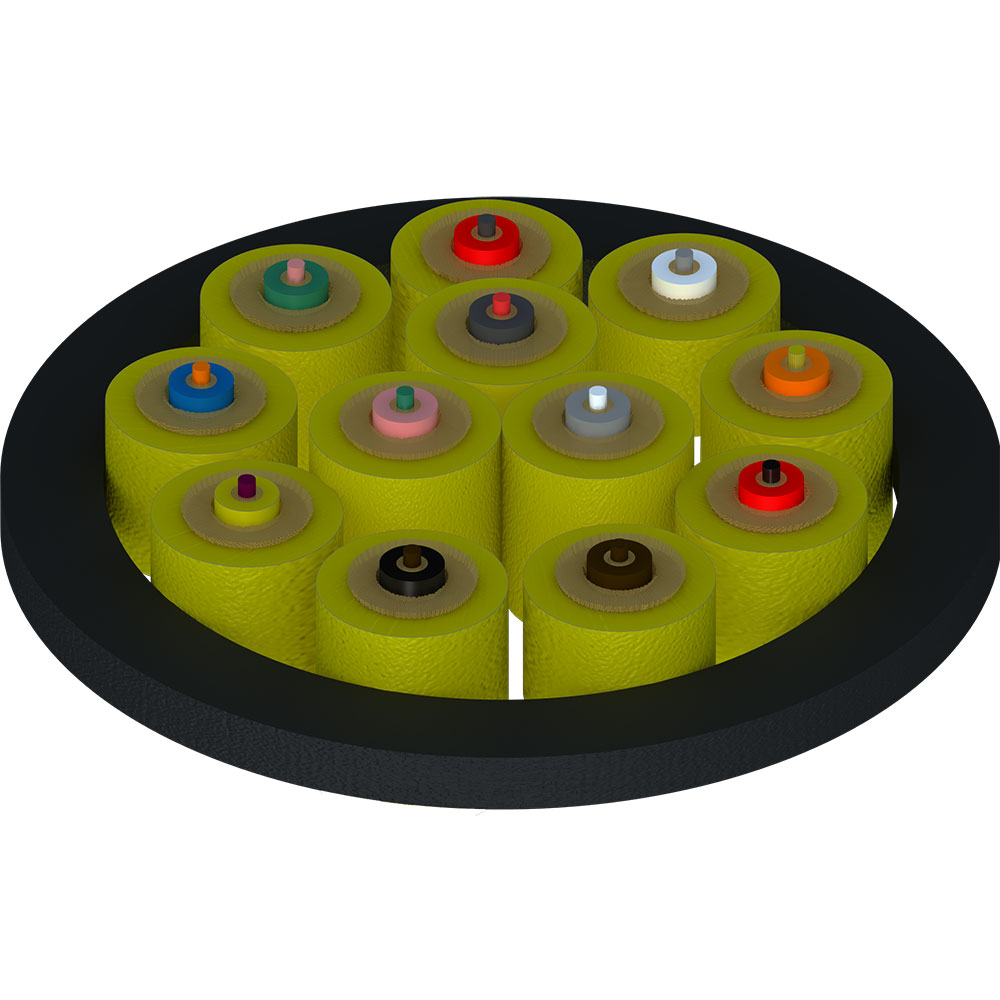

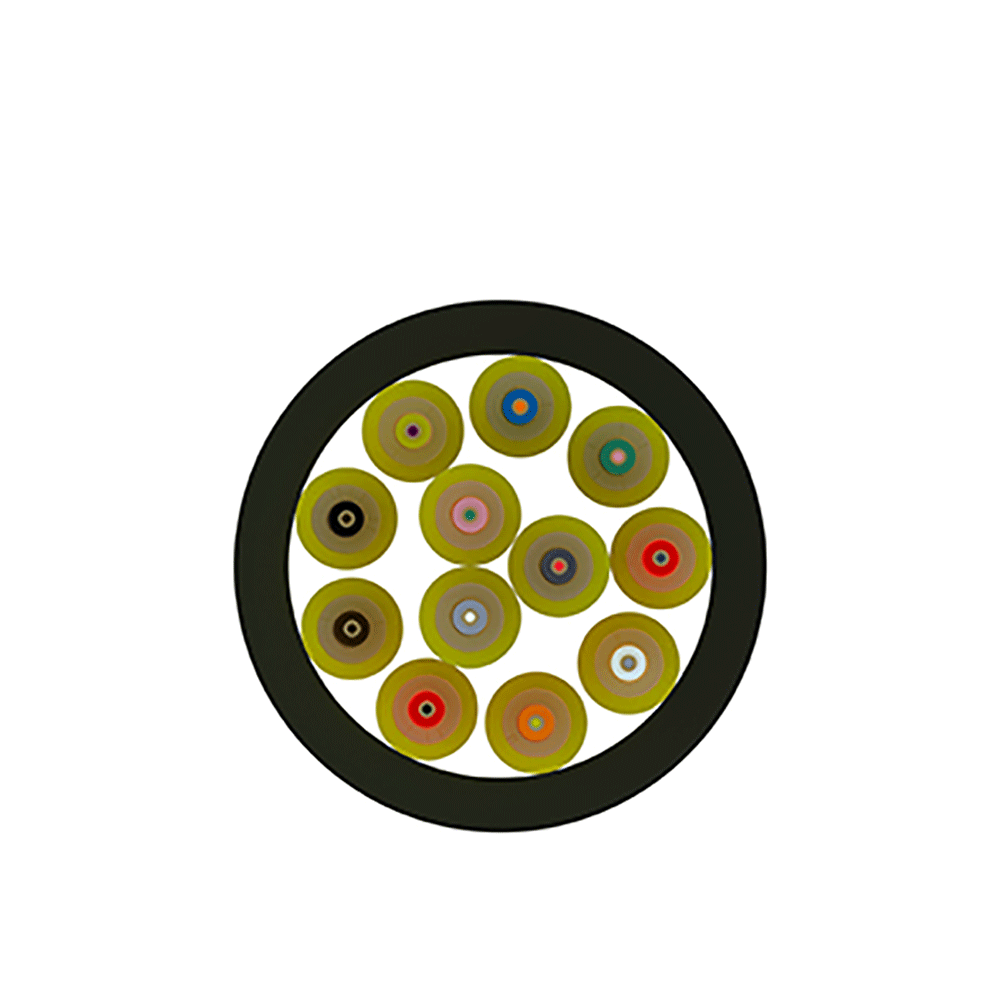

Construction

Design Type

Breakout cable /multi-unit/ 1-layer cable core / 1 FRLS jacket material

Number of Fiber

Up to 12

Optical Fiber

Fiber Type

Single Mode Low Water Peak

* Color

1)white 2) red 3) Green 4) blue5) yellow6) black 7) brown 8) violent 9) orange 10) pink 11) gray 12) natural

Semi Tight Buffer

Inner diameter

Nom. 0.5 mm

Outer diameter

Nom. 0.9 to 0.95 mm

* Color

natural (Opaque)

Unit

Inner diameter

Nom. 1.5mm

Outer diameter

Nom. 2.5mm

Unit jacket Material

PVC yellow color

Reinforcement in Each Unit

Aramid Yarns

Number of Tube Per Each Unit

1

Assembly

1 optical fiber will coat to a semi tight buffer or Tight buffer tube with a suitable coating and fill with jelly. this tube will protect with Aramid yarns and coat with PVC to make a single unit

Structure

12 separate units as a bunch (with PVC jacket) will coated with PVC jacket

Ripcord

1 under final jacket

Outer Sheath

Material

PVC Yellow color

Thickness

Nom. 0.8mm

Cable Diameter

Nom. 12.0mm

Cable Weight

Nom. 112kg/km



PERFORMANCE:



Specification

Recommended

Mechanical Characteristics

Tensile Strength

Installation

0.7 KN

Operation

0.1 KN

Min. Bending Radius

Installation

10*D (Cable Diameter)

Operation

15*D (Cable Diameter)

Environmental Characteristics

Temperature

Installation

-20~+80 °C

Operation

-10~+70 °C



Specification

Recommended

Standard

IEC 794-1/ITUT G652D, G657, G651

Construction

Design Type

Breakout cable /multi-unit/ 1-layer cable core / 1 FRLS jacket material

Number of Fiber

Up to 12

Optical Fiber

Fiber Type

Single Mode Low Water Peak

* Color

1)white 2) red 3) Green 4) blue5) yellow6) black 7) brown 8) violent 9) orange 10) pink 11) gray 12) natural

Semi Tight Buffer

Inner diameter

Nom. 0.5 mm

Outer diameter

Nom. 0.9 to 0.95 mm

* Color

natural (Opaque)

Unit

Inner diameter

Nom. 1.5mm

Outer diameter

Nom. 2.5mm

Unit jacket Material

PVC yellow color

Reinforcement in Each Unit

Aramid Yarns

Number of Tube Per Each Unit

1

Assembly

1 optical fiber will coat to a semi tight buffer or Tight buffer tube with a suitable coating and fill with jelly. this tube will protect with Aramid yarns and coat with PVC to make a single unit

Structure

12 separate units as a bunch (with PVC jacket) will coated with PVC jacket

Ripcord

1 under final jacket

Outer Sheath

Material

PVC Yellow color

Thickness

Nom. 0.8mm

Cable Diameter

Nom. 12.0mm

Cable Weight

Nom. 112kg/km



PERFORMANCE:



Specification

Recommended

Mechanical Characteristics

Tensile Strength

Installation

0.7 KN

Operation

0.1 KN

Min. Bending Radius

Installation

10*D (Cable Diameter)

Operation

15*D (Cable Diameter)

Environmental Characteristics

Temperature

Installation

-20~+80 °C

Operation

-10~+70 °C

 CONSTRUCTION:



Specification

Recommended

Standard

IEC 794-1/ITUT G652D, G657, G651

Construction

Design Type

Breakout cable /multi-unit/ 1-layer cable core / 1 FRLS jacket material

Number of Fiber

Up to 12

Optical Fiber

Fiber Type

Single Mode Low Water Peak

* Color

1)white 2) red 3) Green 4) blue5) yellow6) black 7) brown 8) violent 9) orange 10) pink 11) gray 12) natural

Semi Tight Buffer

Inner diameter

Nom. 0.5 mm

Outer diameter

Nom. 0.9 to 0.95 mm

* Color

natural (Opaque)

Unit

Inner diameter

Nom. 1.5mm

Outer diameter

Nom. 2.5mm

Unit jacket Material

PVC yellow color

Reinforcement in Each Unit

Aramid Yarns

Number of Tube Per Each Unit

1

Assembly

1 optical fiber will coat to a semi tight buffer or Tight buffer tube with a suitable coating and fill with jelly. this tube will protect with Aramid yarns and coat with PVC to make a single unit

Structure

12 separate units as a bunch (with PVC jacket) will coated with PVC jacket

Ripcord

1 under final jacket

Outer Sheath

Material

PVC Yellow color

Thickness

Nom. 0.8mm

Cable Diameter

Nom. 12.0mm

Cable Weight

Nom. 112kg/km



PERFORMANCE:



Specification

Recommended

Mechanical Characteristics

Tensile Strength

Installation

0.7 KN

Operation

0.1 KN

Min. Bending Radius

Installation

10*D (Cable Diameter)

Operation

15*D (Cable Diameter)

Environmental Characteristics

Temperature

Installation

-20~+80 °C

Operation

-10~+70 °C

 CONSTRUCTION:



Specification

Recommended

Standard

IEC 794-1/ITUT G652D, G657, G651

Construction

Design Type

Breakout cable /multi-unit/ 1-layer cable core / 1 FRLS jacket material

Number of Fiber
